Safari 4X4 Snorkel for the Toyota Hilux 25 Series 03/2005 - 07/2011 3.0L Diesel 1KD-FTV

Safari 4X4 Snorkel for the Toyota Hilux 25 Series 03/2005 - 07/2011 3.0L Diesel 1KD-FTV

$511.00 AUD
$511.00 AUD
Sale Sold out
Shipping calculated at checkout.

SS120HF

  • Tracked Shipping
  • Quality Guarantee
  • 24/7 Online Support
  • Easy Ordering

    • Shipping Information

    We aim to make ordering with McCormacks 4WD as smooth and transparent as possible.

    Free Local Pick-Up:
Free local pick-up is available. Once your order is ready, we’ll notify you by email with collection details.

    Shipping & Dispatch:
All orders are dispatched from the McCormacks 4WD headquarters in Sandgate, QLD.

    Some products may need to be ordered in. If this applies to your purchase, you’ll receive an email update once your order has been processed and again when it has been dispatched with the courier.

    Commercial Deliveries:
If your order is being delivered to a commercial address, please include the business name in the “Company Name” field at checkout to avoid delivery delays.

    Heavy Items (Over 25kg):
Items weighing more than 25kg must be delivered to a commercial address or a local freight depot for collection. If you’re unsure of the best depot location, our team is happy to assist with arrangements.

    Need Help?
If you have any questions or concerns about your order, please contact us on 07 3269 3294 or email sales@mccormacks4wd.com.au.

    Safari Snorkel

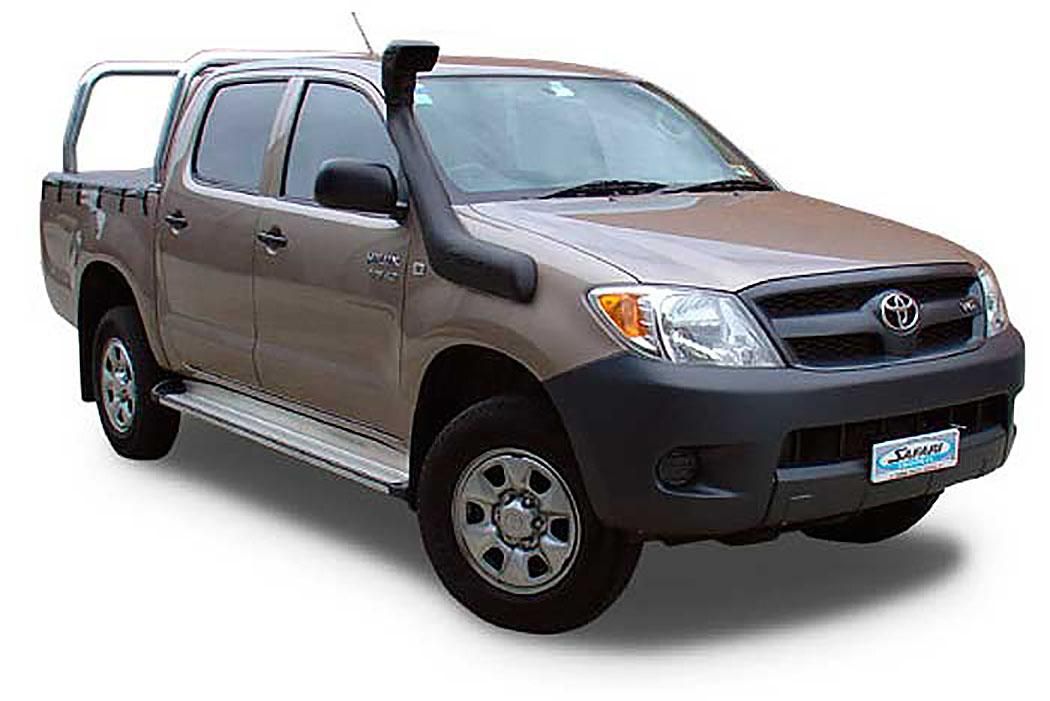

    The SS120HF Safari Snorkel suitable for Toyota Hilux 25 Series Snorkel is designed to deliver a huge volume of the coolest and cleanest air possible into the stock air cleaner assembly of 04/2005 - 09/2011 3.0L Diesel 1KD-FTV engines.

    With the huge air flow demands of each engine in the Toyota 04/2005 - 09/2011 3.0L Diesel 1KD-FTV Hilux 25 Series, Safari took the decision to design a snorkel system that raised the air intake to prevent ingesting harmful elements to the vehicles air cleaner.

    Huge air flow is but one aspect of the ultimate in snorkel design. The Safari snorkel air ram is designed to perform two very important roles. The most obvious is to funnel cool clean air into the snorkel body - but just as importantly, the Safari air ram acts as a highly efficient water separator to remove rain water from the incoming air stream - thus ensuring safe engine operation through even the most torrential tropical storms.

    The genuine Safari Snorkel suitable for Toyota Hilux 25 Series 4x4 Snorkel body and air ram is manufactured to the highest standards in durable, UV stable, cross linked polyethylene material. In addition, the substantial material wall thickness delivers huge physical strength to ensure that the Safari Snorkel suitable for Toyota Hilux 25 Series breezes through the toughest off-road conditions on the planet.

    1 320-133-000 BODY – SNORKEL 1 2 000-135-650 3 ½" AIR RAM ASSEMBLY 1 3 320-032-000 BRACKET - UPPER MOUNTING 1 4 000-002-100 BOLT - HEX 6.0mm x 1.0 x 14mm (SEMS) 2 5 000-951-300 CREW – S/T 4.2mm x 16mm 3 6 000-960 BODY CLIP – PLASTIC 3 7 320-024-200 HOSE – AIR ENTRY 1 7a 000-908 CLAMP - HOSE 70/90mm 1 7b 000-910 CLAMP - HOSE 90/110mm 1 8 000-110 STUD - S/S 8mm x 1.25 x 25mm - O/L 6 9 000-311 WASHER - BODY 8mm x 30mm 6 10 000-205 NUT - NYLOC 8mm x 1.25mm 6 11 320-017-000 TEMPLATE 1 12 000-914/B HOSE CLAMP - SIZE 56 (BLACK) 1
