Offroad Industries BDS 6.5" Lift Kit FOX 2.5 Coilover Conversion Chevrolet Silverado / GMC Sierra 2500HD/3500HD (20-26)

BDS - 6.5 Inch Lift Kit | FOX 2.5 Coil-Over Conversion | Chevy Silverado Or GMC Sierra 2500HD/3500HD (20-26)
Elevate your 2020-2026 Chevy Silverado or GMC Sierra 2500HD/3500HD with BDS's engineered 6.5-inch lift system featuring FOX 2.5 Coil-Over shocks. This comprehensive kit delivers the suspension geometry and damping control needed for serious off-road performance while maintaining highway composure. Accommodate up to 38-inch tires and gain the ground clearance required for challenging terrain. FOX's proven coil-over technology manages impacts with precision, translating to improved articulation off-road and refined ride quality on pavement. Everything required for proper installation and tuning is included, ensuring your truck achieves optimal performance characteristics from day one.

In addition to replacing the factory torsion bars, the upper and lower control arms are upgraded to improve strength, travel, and accommodate the new coilovers. The new upper control arms are fabricated from large 1.5" OD x .120-wall tubing, fully TIG welded for the highest quality, strength and durability. To compliment the uppers, the new lower control arms are built from high strength steel, fully boxed with internally gusseted.

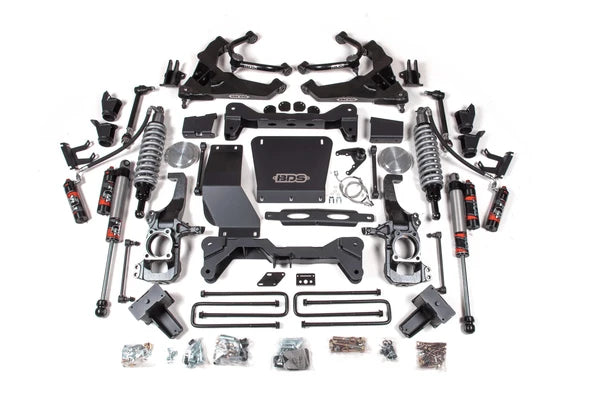

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilises FOX 2.5 coil-over shocks, heavy duty tubular upper control arms, fully boxed and gusseted lower control arms, high-arched 1/4-inch thick steel crossmembers, and a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar links, bump stop extensions, stainless steel brake lines, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers replacement lift blocks to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear is a u-bolt flip kit for max clearance and precision tuned FOX 2.0 Performance Series shocks for ultimate off road performance.

Chevr

FOX Performance Elite

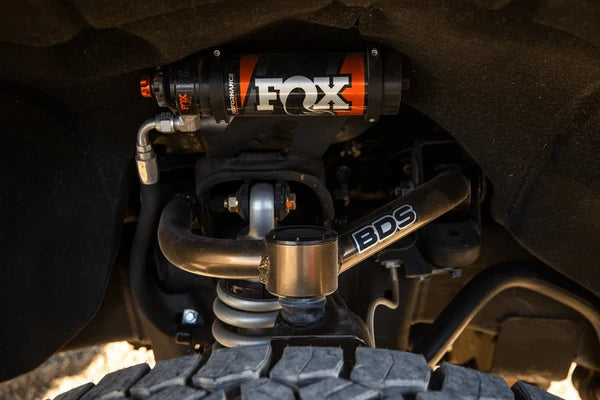

FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

HD Control Arms
Built for strength, performance and increased travel, these control arms are ready to bolt-in. The upper arms use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. The new lower control arms are built from high strength steel, fully boxed with internally gusseted. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features & Benefits

FOX 2.5 coil-overs offer improved damper performance over stock
DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
Performance UCAs increase strength and allow for more suspension travel
High Clearance design w/ no torsion bar drop maximises ground clearance
Robust steering knuckles maintain ESC system compliance
HD skid plate system improved offroad protection
Multipoint differential relocation brackets to secure the front axle and improve CV angles
Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels

38 x 13.5 with 20 x 9 and 5.5 in. Backspace
