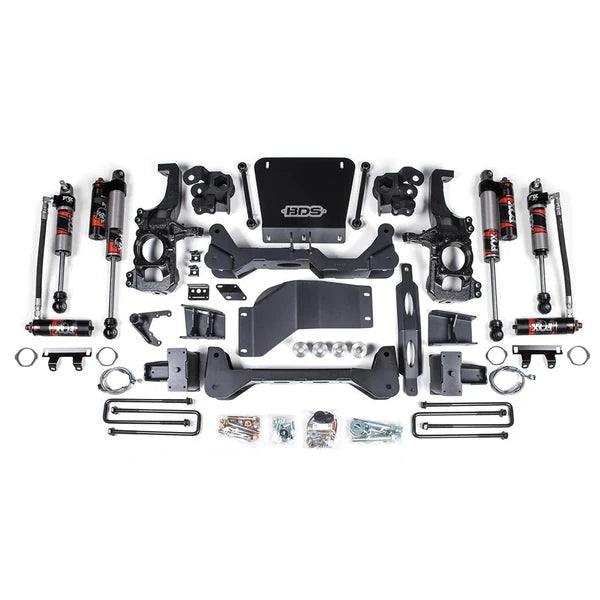

Offroad Industries BDS 6.5" Lift Kit FOX Performance Elite Chevrolet Silverado / GMC Sierra 2500HD/3500HD (20-26)

BDS 6.5" FOX Performance Elite for Chevrolet Silverado 2500/3500
Boost your 2020-2026 Chevy Silverado or GMC Sierra 2500HD 4WD to new heights with BDS Suspension's 6.5-inch lift kit! No need to fuss with dropping the torsion bar cross-member - this easy-to-install kit provides optimal ground clearance. Elevate your truck's stance, performance, and capability, while creating room for impressive 38" tires. Don't hesitate, upgrade your ride now!

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front, the kit utilizes torsion bar relocation brackets, high-arched 1/4-inch thick steel crossmembers along with a multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles. These combined with the provided sway bar drops, stainless steel brake lines, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers replacement lift blocks and u-bolts to lift and level that stance. The lift block installs in place of the stock block and retains ride quality and load capacity. Also included, BDS supplies brake line and ABS line relocation brackets allow the use of factory brake lines. Lastly are a matching set of NX2 Nitro or FOX 2.0 Performance Series shocks.

FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.

Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with factory tie rod ends to maintain steering angles for proper function.

Features & Benefits

High Clearance design w/ no torsion bar drop maximizes ground clearance
Robust steering knuckles maintain ESC system compliance
HD skid plate system improved offroad protection
Multipoint differential relocation brackets to secure the front axle and improve CV angles
FOX 2.5 shocks designed specifically for increase travel and the ability to soak up the roughest terrain
DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
Factory Protection Plus drivetrain warranty included
Recommended Tires & Wheels

38 x 13.5 with 20 x 9 and 6.18 in. Backspace
37 x 12.5 with 20 x 9 and 4.5 in. Backspace
