Offroad Industries FOX Performance Series 2.5 Front Shock 1.5- 3 Chevrolet Silverado 2500HD 3500HD (20+)

Offroad Industries FOX Performance Series 2.5 Front Shock 1.5- 3 Chevrolet Silverado 2500HD 3500HD (20+)

$749.00 AUD
$749.00 AUD
Sale Sold out
Shipping calculated at checkout.

987-24-010

  • Tracked Shipping
  • Quality Guarantee
  • 24/7 Online Support
  • Easy Ordering

    • Shipping Information

    Please note this item weighs more than 25kg. Items 25kg+ require delivery to a local depot for collection and or a commercial establishment.

    Delivery to a residential property will require a hydraulic tail gate truck and will incur an additional handling fee from the carrier.

    McCormacks friendly staff have successfully organised shipping to depots for hundreds of satisfied customers around Australia.

    If you have access to a hydraulic tail gate truck at a commercial address, please use the include the name in the field 'Company Name' at checkout.

    Otherwise, if a residential address has been entered, a team member will be in touch to confirm delivery options for a local depot or advise of the additional handling fees required by the carrier.

    Need Help?
    If you have any questions or concerns about your order, please contact us on 07 3269 3294 or email sales@mccormacks4wd.com.au.

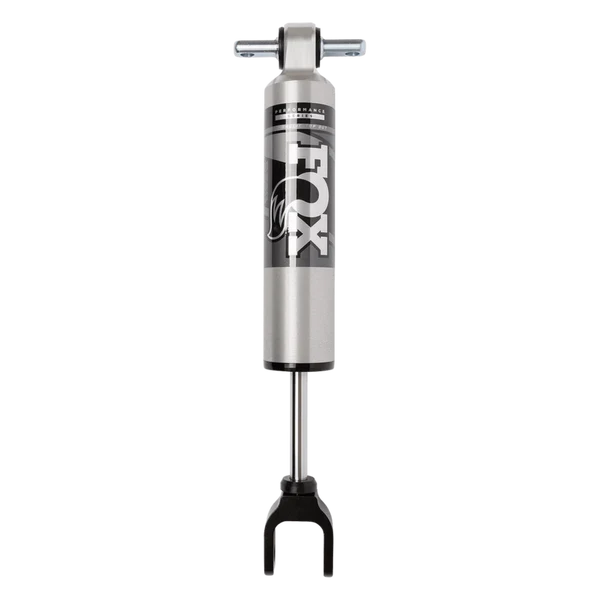

    Fox Performance Series 2.5 FRONT SHOCK 1.5- 3 2020+ Chevrolet Silverado 2500HD 3500HD
    FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodised aluminium body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.

    Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.

    Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

    Vehicle Suitability

    2020 Chevy Silverado 2500HD 3500HD
    1.5 - 3" Travel will require a UCA
    Sold Individually.
    FOX-021-CMYK-HiRes.png__PID:d54ebeb3-8397-4bf5-9159-569ba3bda665
    Fox Product Specifications 987-24-010
    PART NUMBER 987-24-010
    FEATURES 2.5” Impact extruded 6061-T6 aluminium shock body
    Type II clear-anodized body plating
    High-flow velocity-sensitive damping
    5/8” hard chrome shaft
    Internal floating piston (IFP)
    Hydraulic Top Out (HTO) piston
    TRAVEL 5.18
    FRONT LIFT HEIGHT 1.5-2.5
    EXTENDED LENGTH 18.95
    COMPRESSED LENGTH 13.76
    TOP MOUNT Bar Pin
    BOTTOM MOUNT Clevis
    FITMENT NOTES Lift: 1.5-2.5 inches
